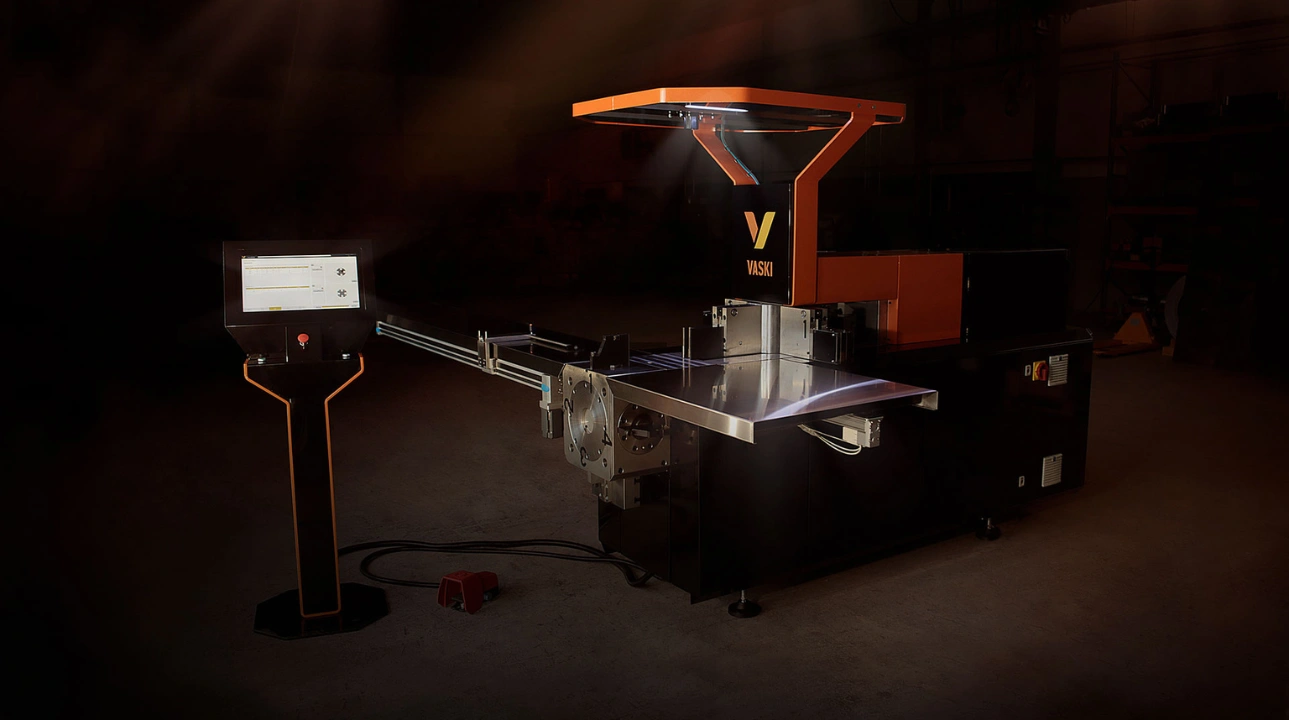

VaskiBEND
An energy-efficient, precise, servo-electric bender designed for high production efficiency.
The VaskiBend is a versatile machine family for bending flat bars.
With a quick and accurate back gauge to ensure consistent results, the modular design supports extensive automation options to fulfill specific requirements.

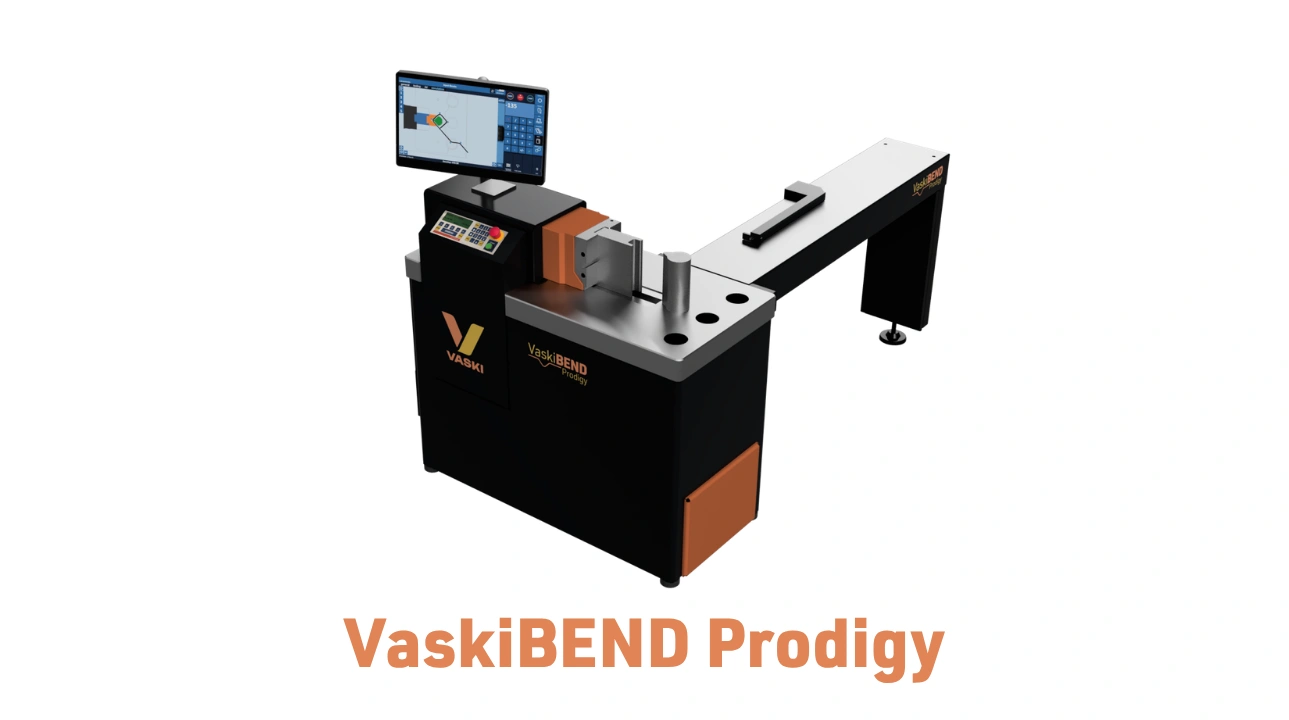

VaskiBEND Prodigy
A cost-effective solution with a 4-station tool magazine and wide force range. The VaskiBEND Prodigy processes flats bars up to 200 mm wide to 20 mm thick.
- Entry level, energy-efficient hydraulic.
- Manual 1+1 tooling.
- Flexible multi-operation processing with manual tool change

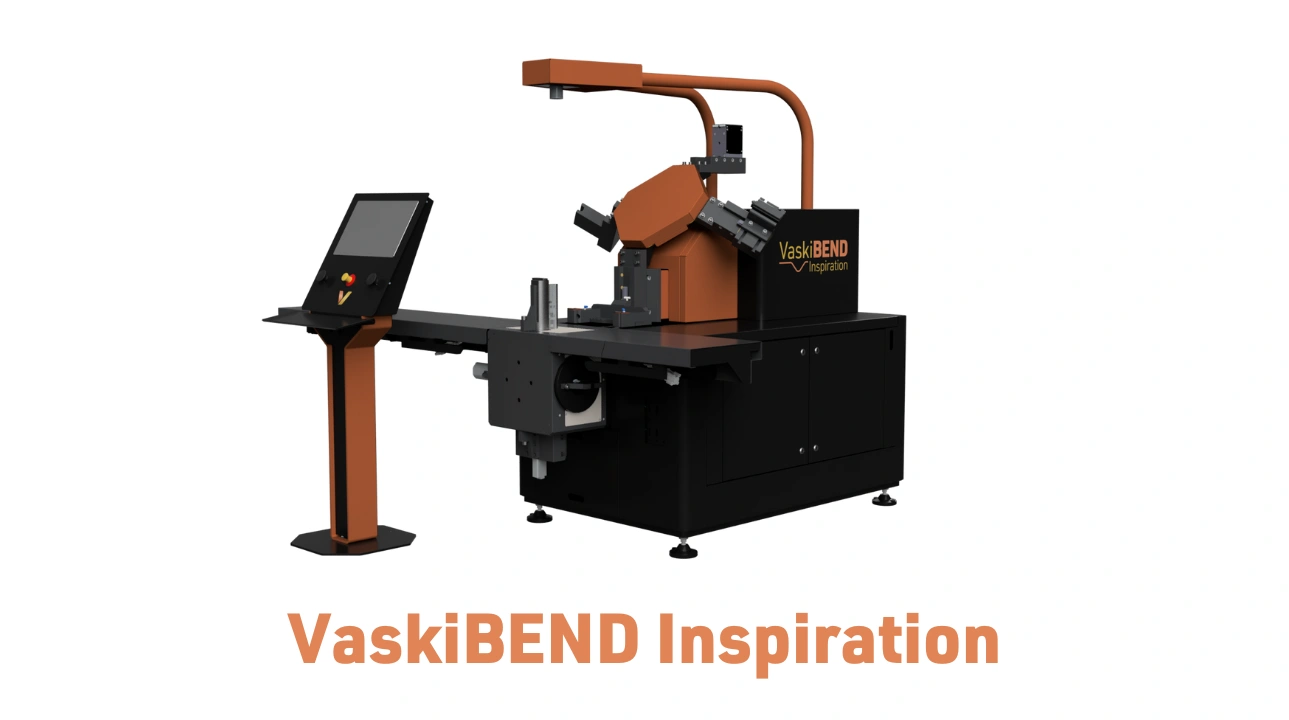

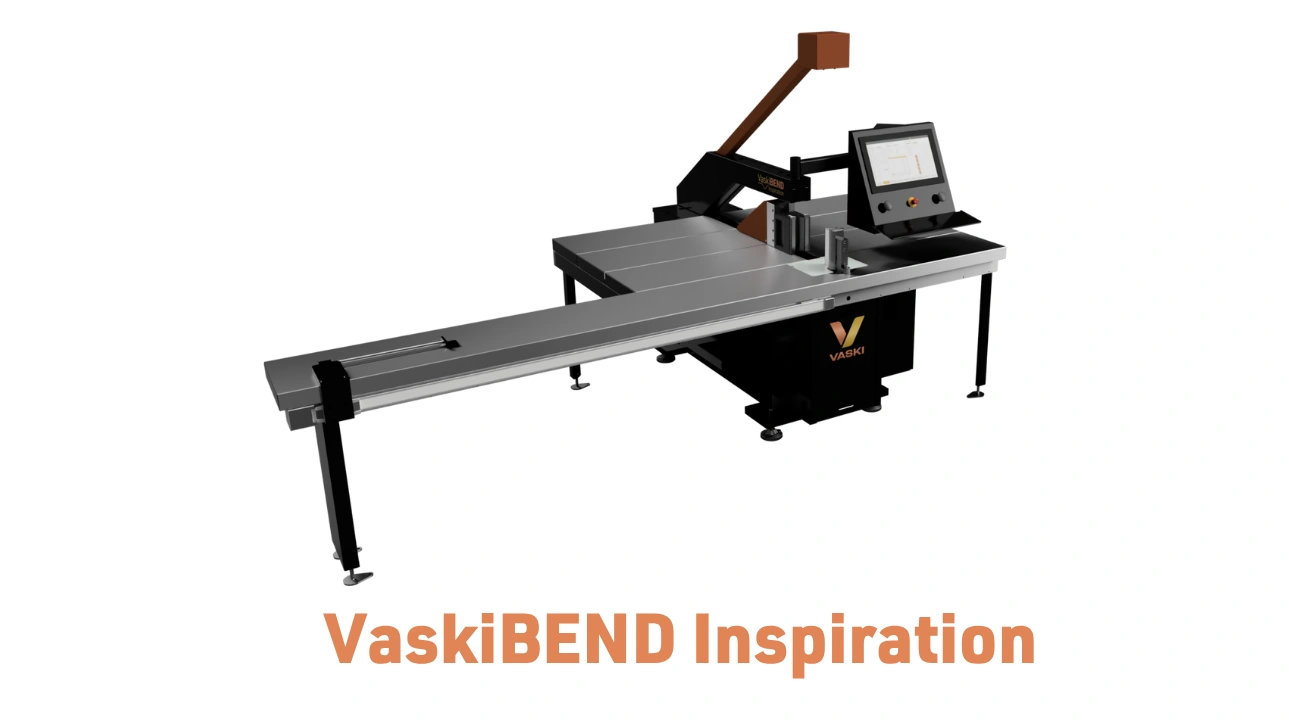

VaskiBEND Inspiration - SingleTool
An all-electric flat bar bender with a ram force up to 400 kN.
- Mid -level, servo-electric drive.
- Bending angle verification with camera (option).
- Low electricity consumption and low maintenance costs.
VaskiBEND Inspiration - MultiTool
This bender combines a unique automated tool change with the same powerful ram force as the single-tool machine.
- For bending multi-shaped parts with one go.
- Automatic tool changer (4 stations).
- Integration is possible with VaskiROBOT and / or VaskiFLOW system.

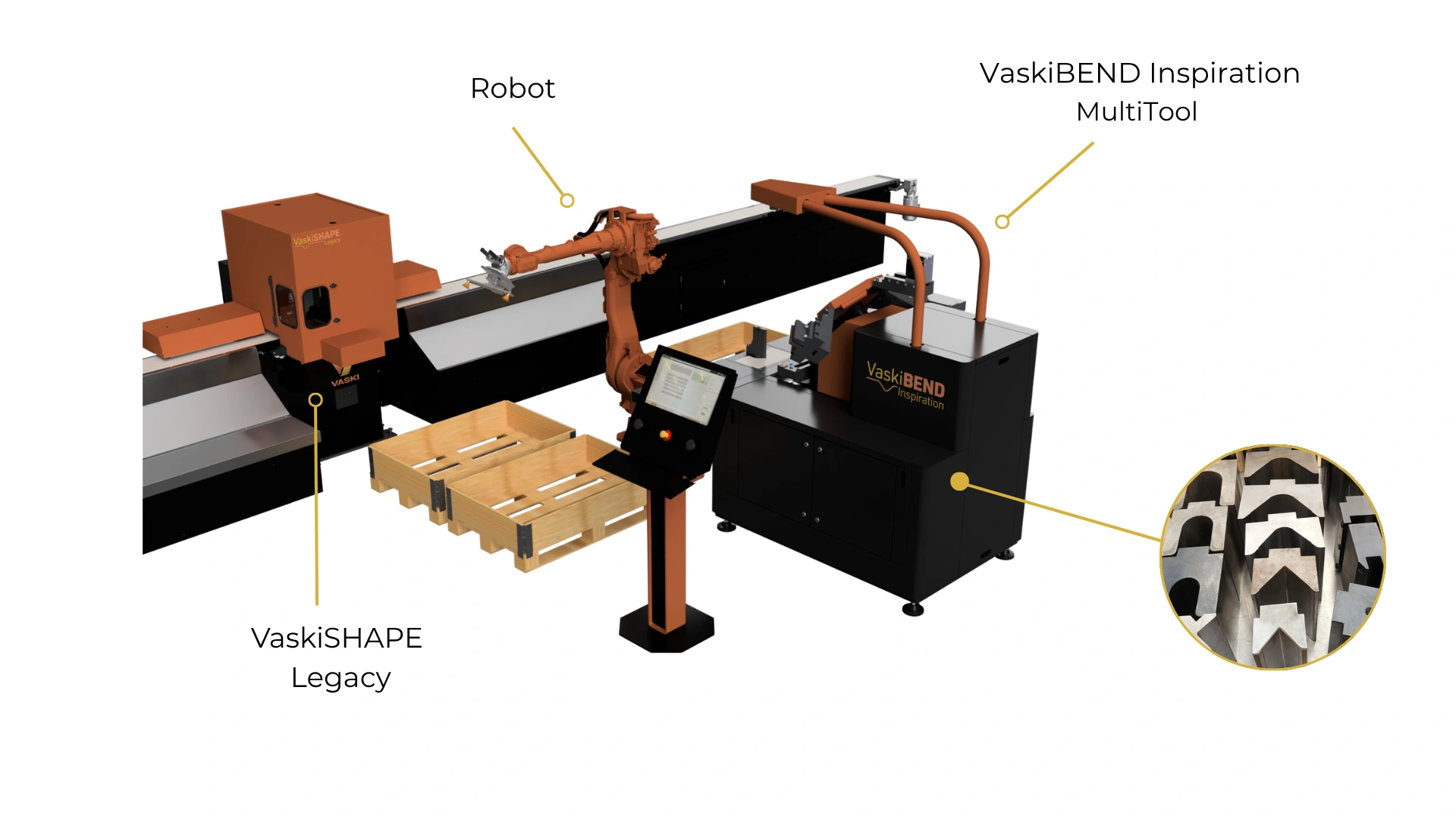

Example of Vaski-RoboBEND
| Technical Specifications | VaskiBEND Prodigy | BEND Inspiration Single & MultiTool |
|---|---|---|
|
Bending force |
200 kN or 400 kN |
400 kN |
|
Bending system |
Hydraulic |
Servo-electric |
|
Positioning gauge |
Electric |
Servo-electric |
|
Tool change system |
Manual |
4-tool automatic tool change (MT4) |
|
Tooling height |
– |
200 mm |
|
Max. stroke (mm) |
245 |
400 mm |
|
Max. working speed (mm/sec) |
9.6 |
– |
|
Return speed (mm/sec) |
62 |
– |
|
High bending (mm) |
H=200 |
– |
|
Extra high bending (mm) |
H=350 |
– |
|
Air requirements |
– |
6 bar, 300 l / min |
|
Bar width |
Up to 100 mm |
Up to 100 mm |
|
Bar thickness |
Up to 10 mm |
Up to 10 mm |
Download the Vaski Product Catalogue
Discover Vaski technologies for efficient flat bar and busbar manufacturing. The catalogue presents punching, bending and shaping solutions designed to improve productivity and streamline modern metal production, with a complete overview of machine capabilities and technical specifications. It brings together the most relevant product information in one place to support evaluation and selection of the right solution for your production needs.
VaskiCAM
VaskiCAM is an easy-to-use program designed to further automate your production. It reads ERP orders and processes the entire order at once. You can automatically process individual parts as well as complete orders. The user-friendly and intuitive interface ensures ease of use. Standard manual programming is supported, and features can be expanded with additional modules.
